Agitator Seals

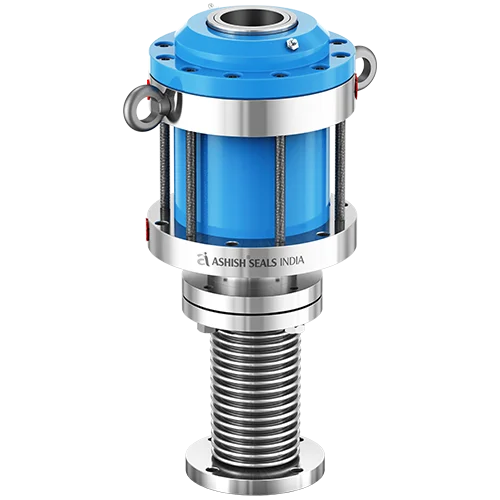

ANFD Reactor Single & Double Mechanical Seal
AS103
The ANFD Reactor Single & Double Mechanical Seal is designed for agitated thin film dryers and reactor vessels operating under demanding conditions. It provides reliable sealing for top-entry agitators handling high temperature, high pressure, and aggressive chemical media, ensuring minimal leakage and stable process performance.
Ashish Seals India Pvt. Ltd., an ISO 9001:2015 certified manufacturer, produces this precision-balanced double seal for long service life and easy maintenance. It supports smooth rotation, reduces wear, and is widely used in chemical, pharmaceutical, and specialty process industries where dependable containment is critical.
Characteristics
Agitated Nutsche Filters and Dryers, Rotary Vacuum Paddle Dryers, Horizontal Reactors with Expanding Shaft.Metal Components
SS 316, SS 316L, Duplex, Super Duplex, Hastelloy C, MonalSeal Faces
Carbon, Silicon carbide, Tungsten carbideSecondary Seal
FKM, FFKM, EPDM, AFLAS, TTV, PTFE, GRAFOILApplication
Chemical Processing, Pharmaceutical Manufacturing, Specialty Chemicals, Petrochemical Industry, Reactor & Dryer Systems.
| No. | Component |
|---|---|
| 1 | IB Mating Ring |
| 2,4,6,8 | O-Ring |
| 3 | OB Mating Ring |
| 5 | IB Seal Ring |
| 7 | OB Seal Ring |
| 9 | IB Retainer |
| 10,15 | Grub Screw |
| 11,16 | Spring |
| 12,17 | Thrust Ring |
| 13,18 | Snap Ring |
| 14 | OB Retainer |
| 15 | Sleeve |
