Product Code : AS92 Category

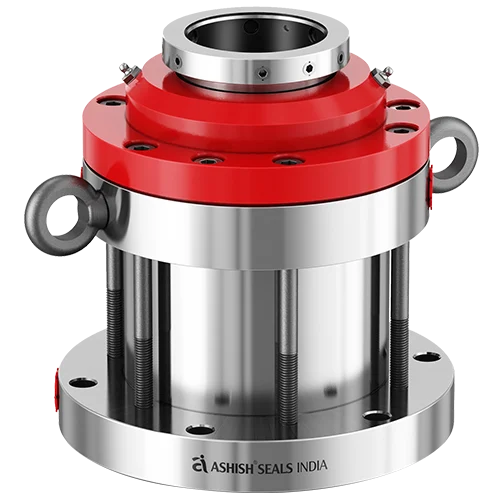

Double Agitator Mechanical Seal

Characteristics :

Standard design, Double seal, Unbalanced, Cartridge, Independent of direction of rotation, Operated by pressurised barrier fluid, Top/Side entry agitators.

Operating :

Shaft Diameter 25mm to 150mm
Pressure Vacuum to 10 bar (max.)
Temperature Ambient to 250°C
Speed 600 rpm (max.)

Overview

A double (or dual) agitator mechanical seal is basically a kind of cap that is designed in such a manner that it offers maximum sealing safety. This type of double agitator mechanical seal practically eliminates the leakage of the fluid and even the seepage of gases in pumps or mixers. The main work of the double mechanical seal is to provide a fixed level of safety and the assurance of zero emissions from the fixers. The mechanism that is being added in the double agitator mechanical seal is best in terms of design, which is not possible using the single seals. Such a mechanical seal stands high and essential when pumping or mixing the dangerous or toxic substance.

Ashish Seals India Pvt. Ltd. is a Mumbai-based organization that holds the reputation as one of the most reliable Manufacturers, Exporters, and Distributors of Mechanical Seals in India and worldwide. Its state-of-the-art infrastructure added with the talented and skilled professionals helps in providing the best quality products to the customers based in the nation and worldwide. The Double Agitator Mechanical Seal holds characteristics like Standard design, Double seal, Unbalanced, Cartridge, Independent of the direction of rotation, Operated by pressurized barrier fluid, Top/Side entry agitators.

Owing to the consistent performance and superior quality products, the ISO 9001 – 2015 Certified Company Ashish Seals India Pvt. Ltd. has been able to establish itself as a renowned company catering the products to numerous clients. The precision mechanical seal solutions offered by Ashish Seals are accepted in different applications such as Chemical, Food industry, Pharmaceutical, Petrochemical, Refineries, and many others.

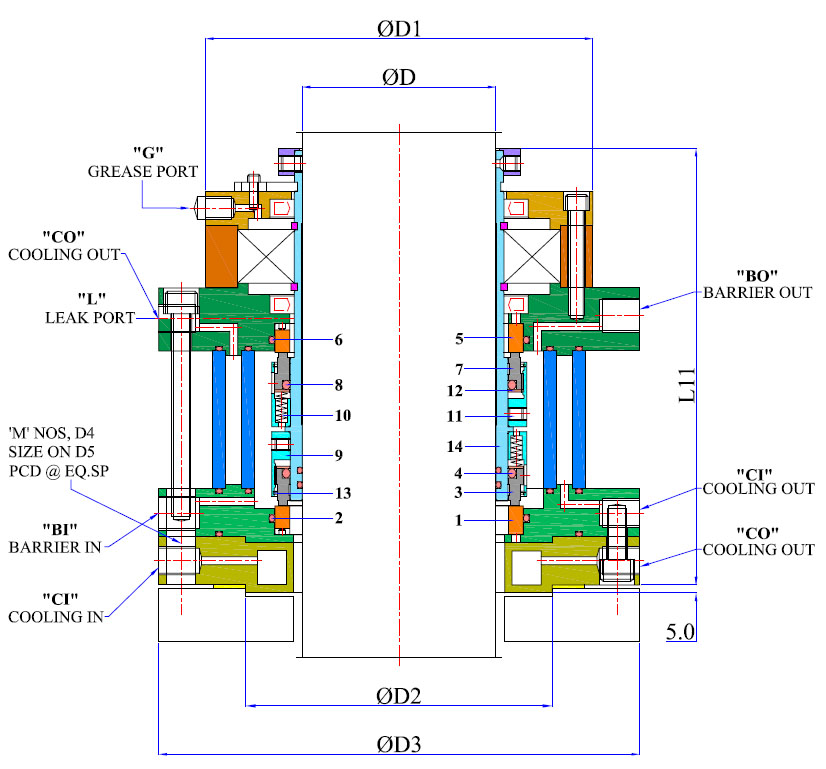

Data Flow Chart

# Description
1 Mating Ring
2 Packing
3 Seal Ring
4,6,8 O-ring
5 Mating ring
7 Seal ring
9 Retainer
10 Spring
11 Grub screw
12 Thrust ring
13 Snap ring
14 Sleeve

Material of Construction

  • Faces : Carbon, Silicon carbide, Tungsten carbide, Ceramic, Lecrolloy
  • Elastomers : FKM, FFKM, EPDM, Silicon, NBR, Aflas, TTV, PTFE, GFT
  • Metallurgy : SS316, SS316L, SS304, Carbon steel, Hastelloy-C, Monel, Alloy 20

Application

Chemical, Food industry, Pharmaceutical, Petrochemical, Refineries.
