ISO 9001 : 2015 Certified Company

Product Code : AS91 Category

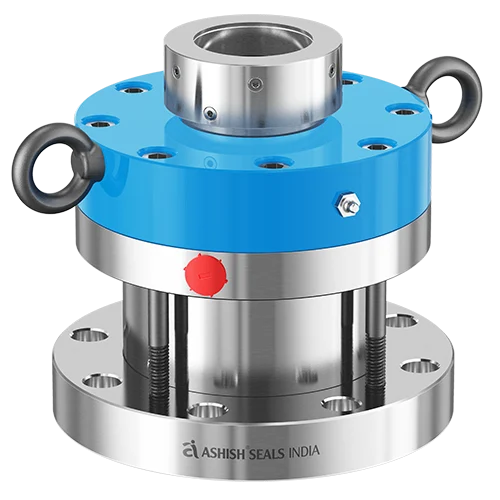

Single Agitator Mechanical Seal

Characteristics :

Standard design, Single mechanical seal, Reverse balanced, Outside mounted, Independent of direction of rotation, Available With/without bearing, Top/Side entry agitators.

Operating :

Shaft Diameter 20mm to 150mm
Pressure Vacuum to 10 bar (max.)
Temperature Ambient to 180°C
Speed 320 rpm (max.)

Overview

A mechanical seal involved in a single agitator or mostly a device that works to seal a moving or reciprocating part. The mechanical seal acts as a stopper from process to atmosphere and seals leaks on parts of agitators, mixers, and vessels. An Agitator mechanical seal creates a flow path that is constrictive either in an axial position or in radial position. The mechanical seal is very effective in restricting the flow through the gap, which remains undetected when it comes to liquid or gas.

Ashish Seals India Pvt. Ltd. is a Mumbai based one of the most reliable Manufacturers, Exporters, and Distributors of Mechanical Seals in India and worldwide. Our mechanical seals comes with different characteristics that include Standard design, Single and Double agitator mechanical seals, Reverse balanced, Outside mounted, Independent of the direction of rotation, Available With/without bearing, Top/Side entry agitators. The single agitator mechanical seal even finds an application in stainless steel mixers, agitators & reactors.

At Ashish Seals, we manufacture a flawless series of products with our state-of-the-art production machines. Owing to our team of professionals and advanced machinery, we have been able to meet bulk orders from clients throughout the world within the specified time. Here at Ashish Seals, we manufacture the machinery seal without compromising on the quality. Moreover, the expertise and in-depth knowledge of our team of professionals help in carrying out designing and manufacturing requirements accordingly.
Moreover, due to the quality products, our Single Agitator Mechanical Seal is widely used in different industries like Chemical, Food industry, Pharmaceutical, Petrochemical and Refineries.

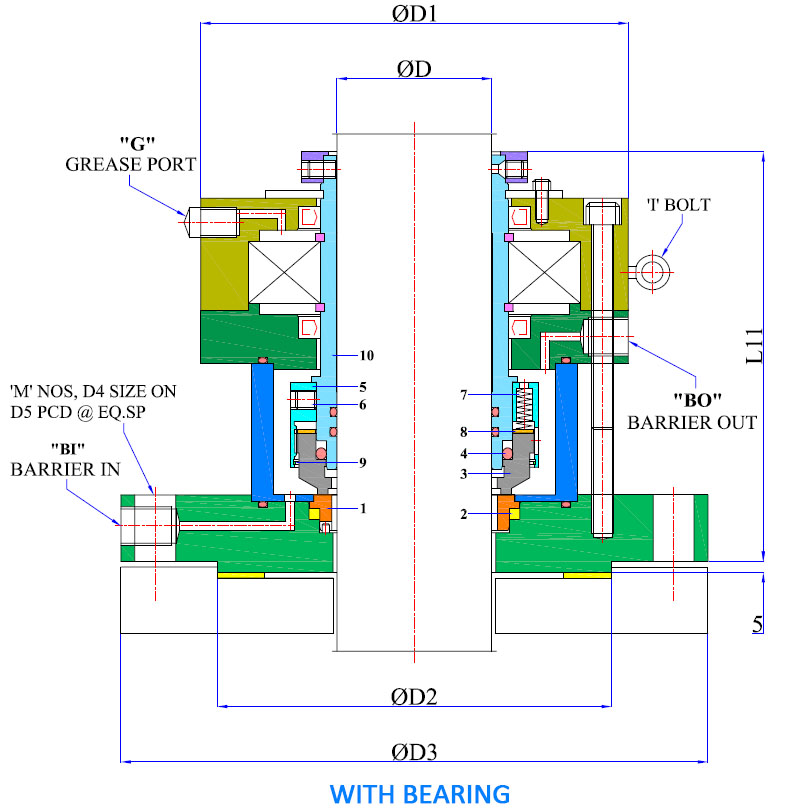

Data Flow Chart

# Description
1 Mating Ring
2,4 O-ring
3 Seal Ring
5 Retainer
6 Grub screw
7 Spring
8 Thrust ring
9 Snap ring
10 Sleeve

Material of Construction

  • Faces : Carbon, Silicon carbide, Tungsten carbide, Ceramic
  • Elastomers : FKM, FFKM, EPDM, Silicon, NBR, Aflas, TTV, TCV
  • Metallurgy : SS316, SS316L, SS304, Hastelloy-C, Monel, Alloy 20

Application

Chemical, Food industry, Pharmaceutical, Petrochemical, Refineries.
