Agitator Seals

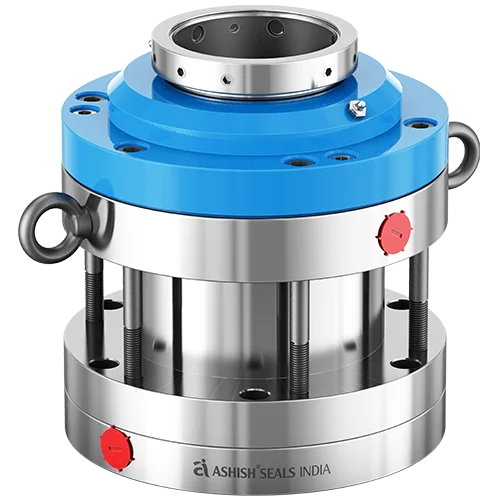

Double Cartridge Jacketed Agitator Seal
AS98
The Double Cartridge Jacketed Mechanical Seal is designed for maximum sealing safety in agitators, mixers, and vessels, especially with hazardous or high-temperature fluids. Its dual sealing arrangement minimizes leakage and gas emissions, ensuring reliable operation and enhanced process protection.
Ashish Seals India Pvt. Ltd., an ISO 9001:2015 certified manufacturer in Mumbai, produces these seals in standard, Balanced & Unbalanced, and cartridge designs. Suitable for top- and side-entry agitators and operating with pressurized barrier fluid, they are widely used in chemical, food, pharmaceutical, petrochemical, and refinery industries.
Characteristics
Standard design, Double seal, Balanced & Unbalanced, Cartridge, Independent of direction of rotation, Operated by pressurized barrier fluid, Top/side entry agitators.Metal Components
SS316, SS316L, SS304, Carbon steel, Hastelloy-C, Monel, Alloy 20Seal Faces
Carbon, Silicon carbide, Tungsten carbide, CeramicSecondary Seal
FKM, FFKM, EPDM, AFLAS, TTV, PTFE, GFT, GRAFOILApplication
Chemical, Food Industry, Pharmaceutical, Petrochemical, Refineries.
| No. | Component |
|---|---|
| 1 | IB Mating Ring |
| 2 | Packing |
| 3 | OB Mating Ring |
| 4,6,8 | O-Ring |
| 5 | IB Seal Ring |
| 7 | OB Seal Ring |
| 9 | Retainer |
| 10 | Grub Screw |
| 11 | Spring |
| 12 | Thrust Ring |
| 13 | Snap Ring |
| 14 | Retainer |
