Product Code : CS53 Category

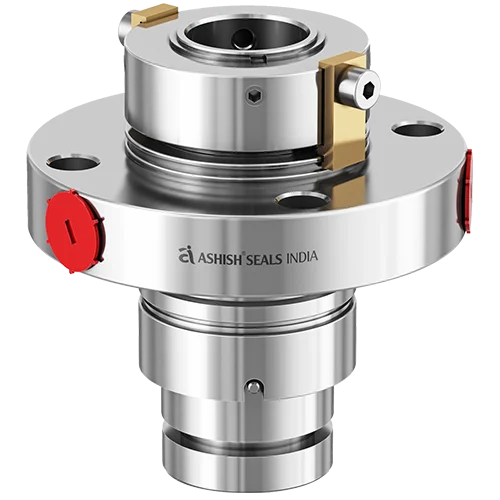

Double Cartridge Mechanical Seal

Characteristics :

Standard compact cartridge design, Double mechanical seal, Balanced, Inside mounted, Independent of direction of rotation.

Operating :

Shaft Diameter 25mm to 80mm
Pressure 20 bar (max.)
Temperature -20°C to 220°C


The double cartridge mechanical seals are one such product of choice, which are mainly used when reliability is required in industries. These double cartridge mechanical seals are proven, rugged performers that industries use in a wide range of sealing applications across different departments. The cartridge seals are perfect for plant-wide standardization as they can save time with an easy installation option. In addition to this, the Double cartridge mechanical seal for heavy-duty applications. These mechanical seals are also ideally suited for high viscosity and high solids applications.

Double cartridge mechanical seals, which are also known as dual cartridge seals is an answer to those applications where the second level of protection is needed in order to reduce the risk of an environment or operating equipment. Ashish Seals, an ISO 9001 – 2015 is one of the manufacturers, suppliers and exporters of industry mechanical seals in India and abroad. It offers a wide variety of models for different applications that are easy to install and fix. The double cartridge mechanical seal mainly complies with environmental regulations and ANSI standards. To meet the demands of different industries, Ashish Seals offer a variety of configurations of mechanical seals that are available depending on the application and operating conditions.

This double cartridge mechanical seal comes loaded with characteristics like Standard compact cartridge design, Double mechanical seal, Balanced, Inside mounted and Independent of direction of rotation. In addition, the mentioned seal is also used in different applications that include Slurry, Pulp & paper and syrup industry.

Data Flow Chart

# Description
1,8 Mating Ring
2,5,7,9,16,17 O-ring
3 Packing
4,6 Seal ring
10,11,12 Pin
13,14 Spring
15 Sleeve
18 Gland
19,20 Grub screw
21 Gasket
22 Location plate
23 Allen bolt

Material of Construction

  • Faces : Carbon, Silicon carbide, Tungsten Carbide
  • Elastomers : FKM, FFKM, EPDM, NBR, Silicon, Aflas, TTV, TCV
  • Metallurgy : SS316, SS316L, SS304, Hastelloy-C, Monel, Alloy-20


Slurry, Pulp & paper, Syrup.
