Agitator Seals

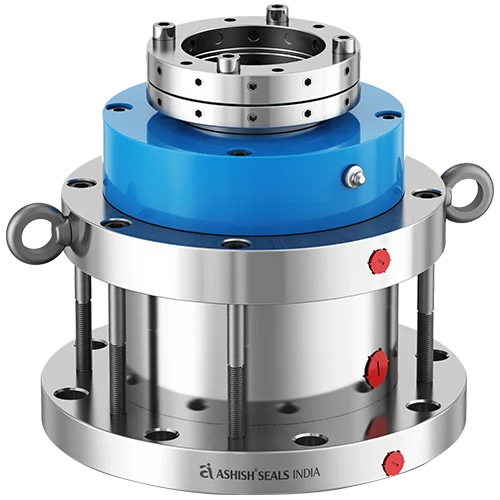

Double Cartridge Reactor Mechanical Seal
AS99N
The Double Cartridge Reactor Mechanical Seal is designed for reliable sealing in high-pressure mixing and reactor operations. It minimizes leakage, withstands axial and radial shaft movements, and ensures stable performance under fluctuating pressure and temperature conditions. Its robust construction provides long-term durability even in aggressive chemical media.
Ashish Seals India Pvt. Ltd., an ISO 9001:2015 certified manufacturer in Mumbai, produces these seals with precision engineering and advanced materials. Easy to install and durable, they are ideal for critical industrial processes requiring consistent high-pressure sealing solutions, ensuring safe and efficient operation across reactors and agitators.
Characteristics
Standard design, Double Mechanical seal, Balanced, Cartridge, Independent of direction of rotation, Bottom & Top entry agitators.Metal Components
SS316, SS316L, SS304, Carbon steel, Hastelloy-C, Monel, Alloy 20Seal Faces
Carbon, Silicon carbide, Tungsten carbideSecondary Seal
FKM, FFKM, EPDM, AFLAS, TTV, PTFE, GFT, GRAFOILApplication
Chemical Processing, Pharmaceutical Mixing, Petrochemical Industry, Food & Beverage Processing, Industrial Agitator Systems.
| No. | Component |
|---|---|
| 1 | IB Mating Ring |
| 2 | Packing |
| 3 | OB Mating Ring |
| 4,6,8 | O-Ring |
| 5 | IB Seal Ring |
| 7 | OB Seal Ring |
| 9 | IB Retainer |
| 10,15 | Grub Screw |
| 11,16 | Spring |
| 12,17 | Thrust Ring |
| 13,18 | Snap Ring |
| 14 | OB Retainer |
