Dual Flow Three Side Flange Steam Rotary Joint
RJ109

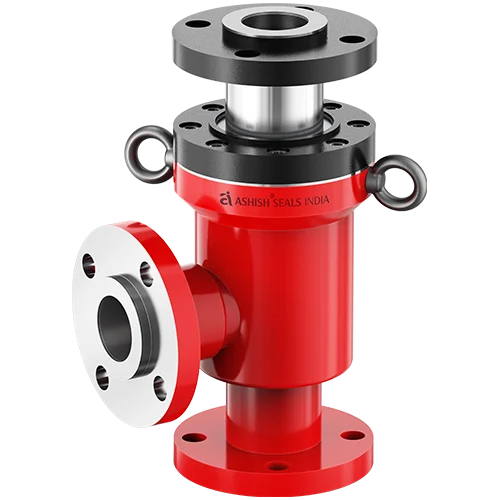

The Dual Flow Three Side Flange Steam Rotary Joint enables efficient steam supply and condensate return between stationary lines and rotating equipment through separate internal passages. Its three-side flange mounting ensures secure installation and stable alignment. The compact, balanced design supports continuous rotation under high pressure and temperature, making it suitable for heavy-duty industrial steam applications.
Ashish Seals India Pvt. Ltd., an ISO 9001:2015 certified manufacturer from Mumbai, designs these rotary joints for reliable, leak-free operation. Built to handle high RPM and thermal loads, they are widely used in power, chemical, textile, paper, and general manufacturing industries for steam-heated rollers, dryers, and cylinders.
Characteristics
Dual Flow Three Side Flange Steam Rotary Joint, self-supported design with a compact balanced mechanical seal ensures smooth and reliable operation. The rotary joint offers easy installation, requires low maintenance, and is designed for a long service life.Metal Components
SS316, SS304, Mild steelSeal Faces
Carbon, CFTSecondary Seal
FKM, TTVApplication
Automotive, Oil and Gas, Pulp and Paper, Steel, Textile.
| No. | Component |
|---|---|
| 1 | Sleeve |
| 2,3 | Sealing Bush |
| 4 | Spring |
| 5 | Seal Housing |
| 7 | Bearing Bush |
| 8 | Cover |
| 10,14,16,18,19 | Gasket |
| 13 | Flange (Welded Part) |
