Agitator Seals

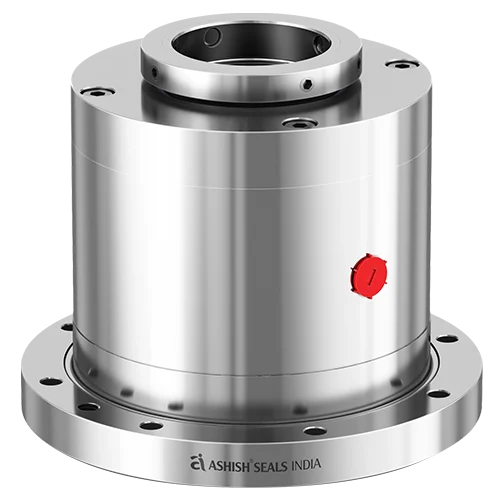

Dyno Mill Double Mechanical Seal
AS95
The Dyno Mill Double Mechanical Seal is designed for handling low to medium viscosity fluids in mills, including inks, solvents, and chemical mixtures. Its dual seal arrangement ensures reliable containment of aggressive media, minimizes leakage, and supports smooth operation in high-speed equipment.
Ashish Seals India Pvt. Ltd., an ISO 9001:2015 certified manufacturer in Mumbai, produces these seals with precision engineering and advanced quality control. Easy to install and durable, they provide long service life and consistent sealing performance for demanding industrial ink, solvent, and chemical processing applications.
Characteristics
Standard design, Double Mechanical seal, Balanced, Cartridge, Independent of direction of rotation, Bottom entry agitators.Metal Components
SS316, SS316L, SS304, Carbon steel, Hastelloy-C, Monel, Alloy 20Seal Faces
Carbon, Silicon carbide, Tungsten carbideSecondary Seal
FKM, FFKM, EPDM, AFLAS, TTV, PTFE, GFTApplication
Ink Processing, Solvent Handling, Printing Industry, Chemical Processing, Coating & Packaging Applications.
| No. | Component |
|---|---|
| 1 | IB Mating Ring |
| 2,4,6,8 | O-Ring |
| 3 | IB Seal Ring |
| 5 | OB Mating Ring |
| 7 | OB Seal Ring |
| 9 | IB Retainer |
| 10 | Grub Screw |
| 11 | Spring |
| 12 | Thrust Ring |
| 13 | Snap Ring |
| 14 | OB Retainer |
| 15 | Grub Screw |
| 16 | Spring |
