Agitator Seals

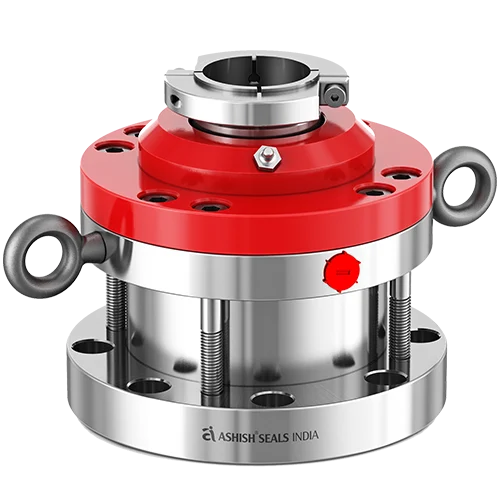

Glass Lined Reactor Single Mechanical Seal
AS104
The Glass Lined Reactor Mechanical Seal is designed for top-entry drives in glass-lined vessels, ensuring reliable, zero-leakage sealing of mixed and pressurized liquids, including corrosive and abrasive media. Its compact construction allows long-lasting performance and safe operation.
Ashish Seals India Pvt. Ltd., an ISO 9001:2015 certified manufacturer and exporter in Mumbai, offers these seals in standard, double, Balanced, and cartridge designs. Suitable for pressurized barrier fluid and independent of rotation direction, they are widely used in chemical, petrochemical, refinery, mining slurry, and water & wastewater applications.
Characteristics
Standard design, Single mechanical seal, Balanced, Cartridge, Independent of direction of rotation, Operated with pressurized barrier fluid, Top-entry glass-lined reactor.Metal Components
SS316, SS316L, SS304, Carbon steel, Hastelloy-C, Monel, Alloy 20Seal Faces
Carbon, Silicon carbide, Tungsten carbide, CeramicSecondary Seal
FKM, FFKM, EPDM, AFLAS, TTV, PTFE, GFTApplication
Chemical, Pharmaceutical, Petrochemical, Refineries, Specialty Chemicals.
| No. | Component |
|---|---|
| 1 | Mating Ring |
| 2,5,6,8,13,14 | O-Ring |
| 3 | Gasket |
| 4 | Seal Ring |
| 7 | Retainer |
| 9 | Spring |
| 10 | Thrust Ring |
| 12 | Sleeve Part |
| 15 | Sleeve |
