Cartridge Seals

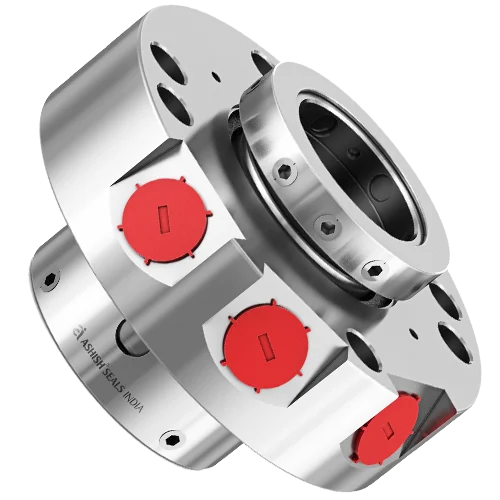

High Pressure Single Cartridge Seal
PS38CX
The High Pressure Single Cartridge Mechanical Seal is designed for reliable sealing in high-pressure pumps. It effectively contains water and steam under demanding temperature and pressure conditions, minimizing leakage and shaft wear. Its compact, robust construction ensures smooth operation, reduced maintenance, and high efficiency in continuous pumping applications.
Ashish Seals India Pvt. Ltd., an ISO 9001:2015 certified manufacturer based in Mumbai, produces these seals using precision engineering and high-quality materials. Easy to install and highly durable, they are ideal for power plants, chemical plants, and other industrial systems handling high-pressure water.
Characteristics
Standard heavy-duty cartridge design, Single mechanical seal, Balanced, Inside mounted, Independent of direction of rotation.Metal Components
SS316, SS316L, SS304, Hastelloy-C, Alloy 20, MonelSeal Faces
Carbon, Silicon carbide, Tungsten carbideSecondary Seal
FKM, FFKM, EPDM, AFLAS, TTVApplication
Slurry, Pulp and Paper, Syrup Processing, Chemical Services, Utilities.
| No. | Component |
|---|---|
| 1 | Mating Ring |
| 2,4,11,19 | O-Ring |
| 3 | Seal Ring |
| 5 | Retainer |
| 6 | Grub Screw |
| 7 | Spring |
| 10 | Sleeve |
| 12 | Gland |
