Agitator Seals

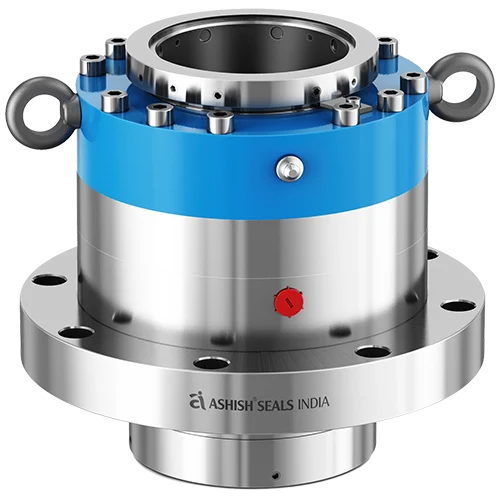

Horizontal Mount Double Cartridge Seal
AS110
The Horizontal Mount Double Cartridge Mechanical Seal is a precision-engineered solution designed for reliable sealing in horizontally mounted pumps. Its pre-assembled dual cartridge design ensures quick installation, accurate face alignment, and consistent performance, handling clean or lightly contaminated fluids under varying pressure and temperature conditions.
Ashish Seals India Pvt. Ltd., an ISO 9001:2015 certified manufacturer and exporter in Mumbai, produces these seals with high-quality materials for long service life and minimal leakage. They are widely used in HVAC systems, water treatment, chemical processing, and general industrial pumping applications requiring efficient and dependable shaft sealing.
Characteristics
Standard compact cartridge design, Double mechanical sealMetal Components
SS316, SS316L, SS304, Hastelloy-C, Monel, Alloy 20Seal Faces
Carbon, Silicon carbide, Tungsten carbide, CeramicSecondary Seal
FKM, FFKM, EPDM, AFLAS, TTV, FEPApplication
Slurry handling, Food Processing, Chemical Processing, Mining Industry, and Water Applications.
| No. | Component |
|---|---|
| 1 | IB Mating Ring |
| 2,4,6,8,10 | O-Ring |
| 3 | IB Seal Ring |
| 5 | OB Mating Ring |
| 7 | OB Seal Ring |
| 15,18 | Spring |
