Cartridge Seals

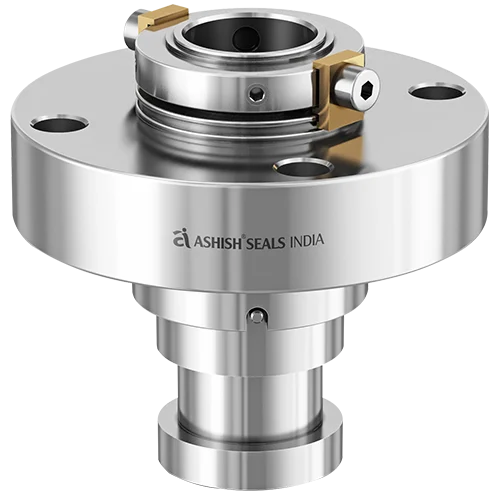

Single Cartridge Mechanical Seal
CS52CTX
The Single Cartridge Mechanical Seal is designed to prevent leakage and ensure reliable, long-term pump operation. Its heavy-duty, non-clogging construction allows cooler running, easy installation, and compatibility with ANSI and Big Bore pumps.
Ashish Seals India Pvt. Ltd., an ISO 9001:2015 certified manufacturer, supplies this balanced, inside-mounted cartridge seal suitable for high-temperature and corrosive services. It is widely used in slurry, pulp & paper, and syrup applications.
Characteristics
Standard heavy-duty cartridge design, Single mechanical seal, Balanced, Inside mounted, Independent of direction of rotation.Metal Components
SS316, SS316L, SS304, Hastelloy-C, Alloy 20, MonelSeal Faces
Carbon, Silicon carbide, Tungsten carbideSecondary Seal
FKM, FFKM, EPDM, AFLAS, TTVApplication
Slurry, Pulp and Paper, Syrup Processing, Chemical Services, Utilities.
| No. | Component |
|---|---|
| 1 | Mating Ring |
| 2,5,8,9 | O-Ring |
| 4 | Seal ring |
| 6 | Spring |
| 7 | Sleeve |
| 10 | Gland |
