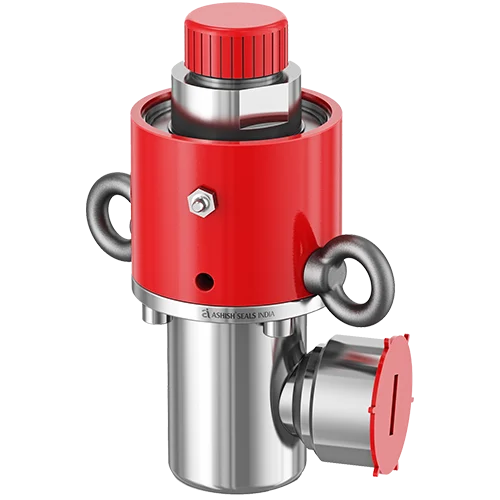

Single Flow Rotary Joint
RJ90
The Single Flow Rotary Joint is designed to transfer a single fluid such as steam, water, thermal oil, or air between stationary and rotating components. Its compact and balanced design ensures smooth performance under high speed, pressure, and temperature conditions. Suitable for continuous rotation and multi-angle operation, it is ideal for industrial machinery, rollers, cylinders, and pumps.
Ashish Seals India Pvt. Ltd., an ISO 9001:2015 certified manufacturer based in Mumbai, manufactures mono flow rotary joints known for durability and easy installation. Built for long service life, they handle high RPM efficiently while minimizing leakage and are widely used in power, chemical, petrochemical, textile, and general manufacturing industries.
Characteristics
Single flow (RJ-90), Self-supported, Compact balanced mechanical seal, Easy installation, Low maintenance, Long service life, Smooth operation.Metal Components
SS316, SS304, Mild steelSeal Faces
Carbon, Silicon carbide, Tungsten CarbideSecondary Seal
FKM, FFKM, PTFEApplication
Automotive, Oil and Gas, Pulp and Paper, Steel, Textile.
| No. | Component |
|---|---|
| 1 | Mating Ring |
| 2,4 | O-Ring |
| 3 | Seal Ring |
| 5 | Spring |
| 6 | Sleeve |
| 8 | Bearing Housing |
| 10 | Bearing |
| 12,13 | Circlip |
| 14 | Seal Housing (Welded Part) |
| 18 | Allen Bolt |
