Cartridge Seals

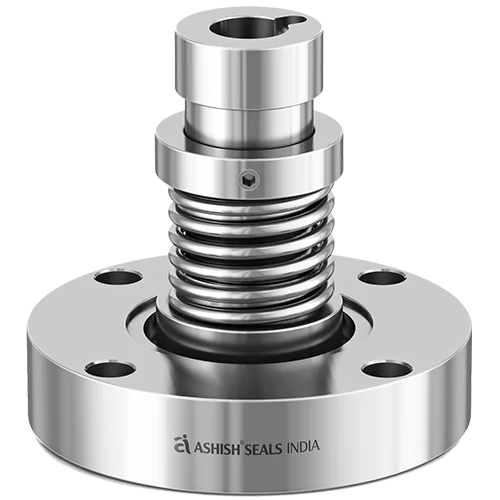

Single Spring Cartridge Mechanical Seal
PS34CX
The Single Spring Cartridge Mechanical Seal is a pre-assembled unit designed for easy installation and reliable sealing. It uses a single spring to maintain contact between the seal faces, effectively preventing process fluid leakage while ensuring smooth operation in pumps and rotating equipment.
Ashish Seals India Pvt. Ltd., an ISO 9001:2015 certified manufacturer and exporter, produces these seals with a compact, Unbalanced, inside-mounted cartridge design. Suitable for all directions of rotation, they are widely used in chemical, food, water, and general industrial applications.
Characteristics
Standard compact cartridge design, Single mechanical seal, Unbalanced, Inside mounted, Independent of direction of rotation.Metal Components
SS316, SS316L, SS304, Hastelloy-C, Monel, Alloy 20Seal Faces
Carbon, Silicon carbide, Tungsten carbideSecondary Seal
FKM, FFKM, EPDM, PTFE, TTVApplication
Slurry, Food Processing, Chemical Processing, Mining Industry, Water Applications.
| No. | Component |
|---|---|
| 1 | Mating Ring |
| 2,4 | O-Ring |
| 3 | Seal Ring |
| 5 | Spring |
| 6 | Drive Collar |
| 7 | Grub Screw |
| 8 | Sleeve |
| 9 | Gland |
