Pump Seals

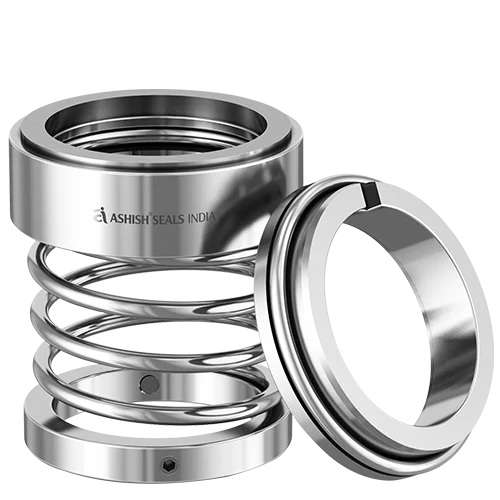

Single Spring Mechanical Seal
PS34
The Single Spring Mechanical Seal is designed for reliable sealing in pumps and rotating equipment. Its single spring maintains consistent contact between seal faces, preventing leakage and ensuring smooth operation in chemical, water, and slurry applications.
Ashish Seals India Pvt. Ltd., an ISO 9001:2015 certified manufacturer and exporter in Mumbai, produces these seals with precision engineering and high-quality materials. They are widely used in chemical processing, water treatment, and slurry-handling industries for long-lasting, leak-free performance.
Characteristics
Standard design, Single seal, Unbalanced, Inside mounted, Independent of direction of rotation.Metal Components
SS316, SS316L, SS304, Hastelloy-C, Monel, Alloy 20Seal Faces
Ceramic, Carbon, Silicon carbide, Tungsten carbide, LecrolloySecondary Seal
FKM, FFKM, EPDM, AFLAS, TTV, PTFEApplication
Chemical, Water, Slurry, Process Industry Applications.
| No. | Component |
|---|---|
| 1 | Mating Ring |
| 2,4 | O-Ring |
| 3 | Seal Ring |
| 5 | Spring |
| 6 | Drive Collar |
| 7 | Grub Screw |
