Rotary Joint & Union

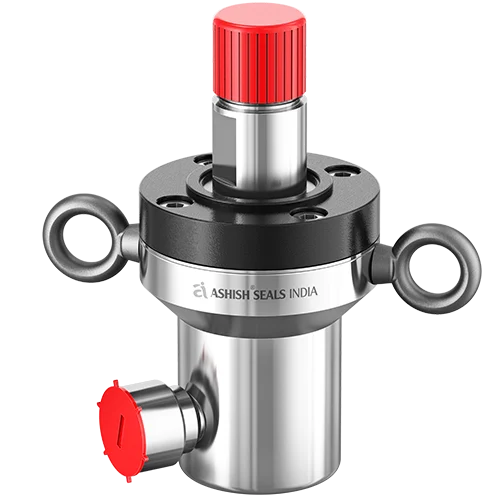

Steam Application Rotary Joint
RJ100
The Steam Application Rotary Joint is designed to transfer steam and condensate between stationary lines and rotating equipment. Its compact, balanced design ensures reliable performance under high pressure, high temperature, and continuous rotation. Suitable for uni-directional or multi-angle operation, it is ideal for steam-heated rollers, dryers, and cylinders.
Ashish Seals India Pvt. Ltd., an ISO 9001:2015 certified manufacturer based in Mumbai, produces these rotary joints for durable and leak-free operation. Designed for easy installation and long service life, they handle high RPM efficiently and are widely used in power, chemical, textile, paper, and general manufacturing industries.
Characteristics
Steam Application Rotary Joint (RJ-100), Self-supported, Compact balanced mechanical seal, Easy installation, Low maintenance, Long service life, Smooth operation.Metal Components
SS316, SS304, Mild steelSeal Faces
Carbon, CFTSecondary Seal
PTFE, GRAPHITEApplication
Automotive, Oil and Gas, Pulp and Paper, Steel, Textile.
| No. | Component |
|---|---|
| 1 | Sleeve |
| 2,3 | Sealing Bush |
| 4 | Spring |
| 5 | Seal Housing |
| 7 | Bearing Bush |
| 8 | Cover |
| 10 | Gasket |
| 13 | Seal Housing (Welded Part) |
