Product Code : CS52 Category

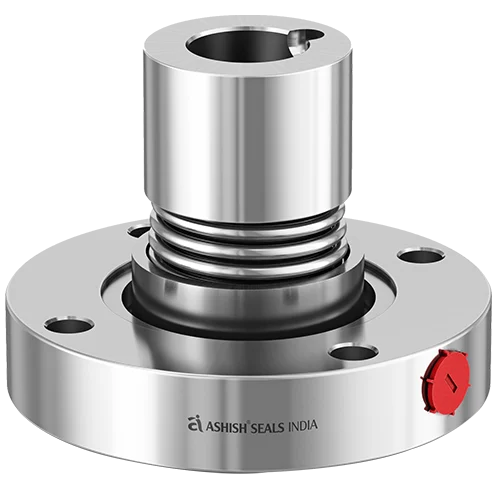

Single Cartridge Mechanical Seal

Characteristics :

Standard heavy duty cartridge design, Single mechanical seal, Balanced, Inside mounted, Independent of direction of rotation.

Operating :

Shaft Diameter 25mm to 100mm
Pressure 25 bar (max.)
Temperature -20°C to 200°C

Overview

A single cartridge mechanical seal is one of the preferred sealing methods that is used to stop the unnecessary liquid circulation around the seal. Such mechanical seals help in enabling the seal to run cooler and longer. The single-cartridge mechanical seal is widely known for its features like Heavy Duty / non-clogging design that ensures no small springs break or clog. In addition to this, the simple cartridge mechanical seal is also very easy to install and it fits the ANSI Standard & Big Bore pumps. These are economical to repair and are also available in inch and metric sizes, which will help in meeting all the demands of the clients accordingly.

Ashish Seals, a reliable Manufacturer, Supplier, and Exporter of Mechanical Seal in Mumbai, entire India, and the international market also offers a wide variety of mechanical seals. These mechanical seals are designed as a reliable solution for the toughest applications and usage in different industries. Ashish Seals is an ISO 9001- 2015 certified company based in Mumbai that has a team of talented professionals that manufacture single cartridge mechanical seals that are easy to install and even minimizes the number of moving parts leading to equipment failure. The designed single cartridge mechanical seals are available for highly corrosive or high-temperature environments.

The single-cartridge mechanical seal designed by Ashish Seal holds different characteristics that include Standard heavy-duty cartridge design, Single mechanical seal, Balanced, Inside mounted, Independent of the direction of rotation. These are also used in different applications that include Slurry, Pulp & paper, Syrup.

Data Flow Chart

# Description # Description
1 Mating Ring 10 Throttle bush
2,4 O-ring 11 Drive collar
3 Seal Ring 12,13 Grub screw
5,6 Pin 14 Snap ring
7 Spring 15 Gasket
8 Sleeve 16 Location plate
9 Gland 17 Allen bolt

Material of Construction

  • Faces : Carbon, Silicon carbide, Tungsten carbide
  • Elastomers : FKM, FFKM, EPDM, NBR, Silicon, Aflas, TTV, TCV
  • Metallurgy : SS316, SS316L, SS304, Hastelloy-C, Alloy-20, Monel

Application

Slurry, Pulp & paper, Syrup.
